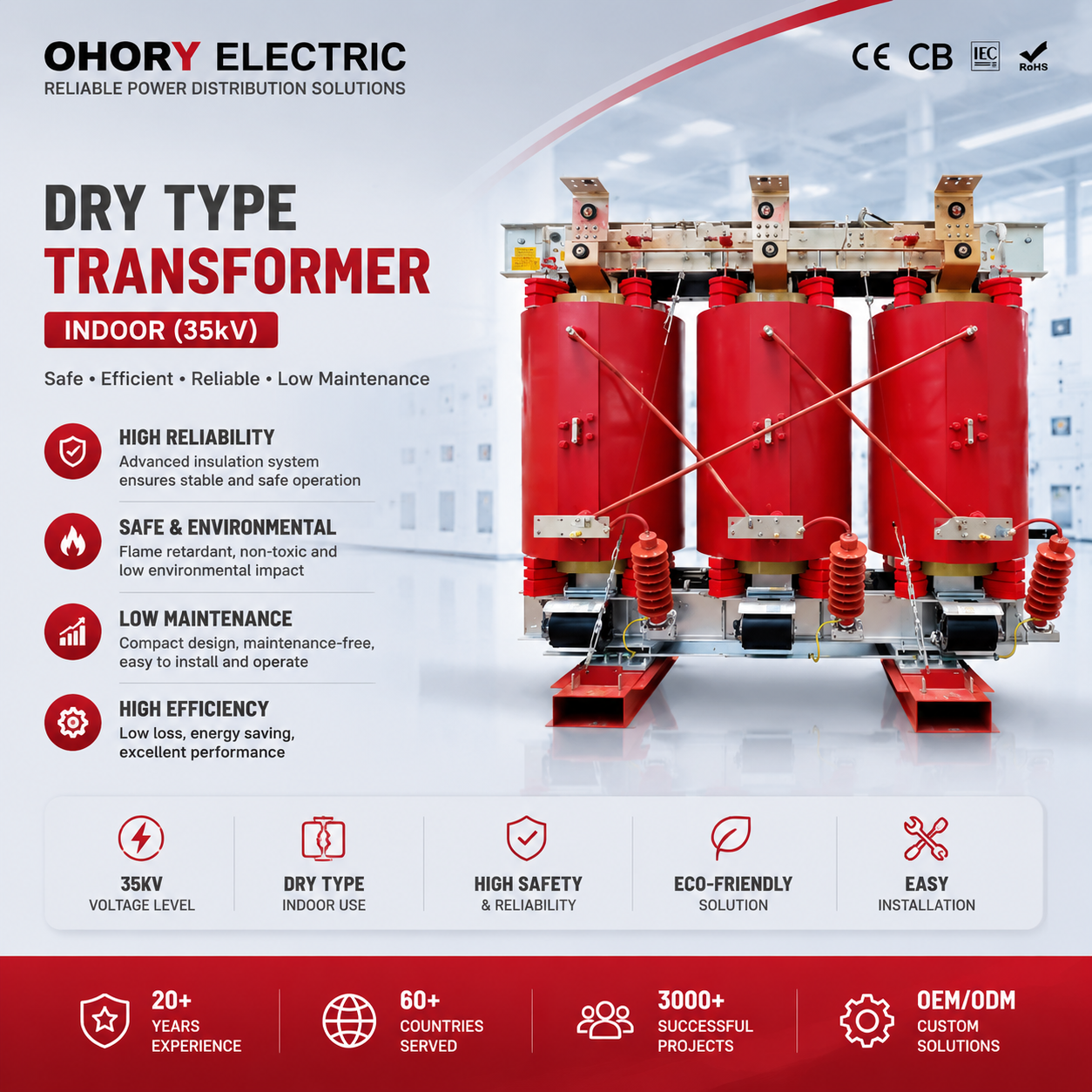

35kV Indoor Dry Type Transformer Cast Resin Epoxy Low Loss for Substation Building CE CESI UL CNAS Certified OEM

Product Overview

This 35kV Indoor Dry Type Transformer is a high-performance, environmentally safe power distribution solution designed for indoor installation in substations, commercial buildings, data centers, industrial facilities, and new energy power stations. Utilizing advanced epoxy resin cast (Cast Resin) insulation technology, the transformer eliminates the need for liquid insulation oil — making it inherently fire-resistant, self-extinguishing, and environmentally friendly. The grain-oriented silicon steel core ensures ultra-low no-load losses and energy efficiency, while the sealed epoxy encapsulation provides excellent protection against moisture, dust, and corrosive environments. Certified to CE, CESI, UL, CQC, and DNV GL international standards, tested in a CNAS nationally accredited 8,000m² laboratory, and manufactured at a 30,000-unit/year facility in Guangdong, China, with proven deployment across 60+ countries including North America and Europe.

Applications

• Indoor Substations — 35kV dry type transformers for step-down substations within industrial parks, commercial complexes, and utility distribution networks
• Commercial High-Rise Buildings — Fire-safe, oil-free distribution transformer for office towers, shopping malls, and hotels where oil fire risk is unacceptable
• Data Centers — Low-loss, low-noise dry type transformer for critical IT facility power distribution requiring fire-safe indoor installation
• Wind Power Stations — Onshore wind farm auxiliary and step-down dry type transformers for turbine control and station service power
• Solar / PV Power Stations — Cast resin transformers for PV inverter step-up and grid connection in prefabricated substation systems
• Hospitals & Healthcare Facilities — Self-extinguishing oil-free transformer meeting strict fire safety requirements for occupied medical buildings
• Schools & Public Buildings — Environmentally friendly, low-noise dry type transformers for safe power distribution in educational and public venues
• Industrial Manufacturing Plants — 35kV indoor dry transformer for factory main distribution where indoor installation and fire safety are required
• Rail & Metro Stations — Cast resin transformers for traction power, auxiliary, and station service supply in underground and indoor rail installations

• Offshore & Marine Applications — DNV GL certified dry type transformer for offshore wind platform and vessel electrical systems
